Product Details
Place of Origin: DONGGUAN
Brand Name: MENTO
Certification: FCC.ROHS,CCC
Model Number: K3412
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: W1000mmxD1380mmxH1600mm(without foot 100±20mm)
Delivery Time: 30work days
Supply Ability: 1000PCS/M
Pcb Size: |
Max. 500mm X 500mm |
Inspection Type: |
Automated |
Light Source: |
LED |
Inspection Speed: |
1000mm/s |
Camera System: |
3D Digital Camera |
Resolution: |
10μm |
Lighting System: |
LED |
Alignment Method: |
Automatic Alignment |
Lighting: |
RGB LED |
Inspection Accuracy: |
±5μm |
Power Supply: |
AC 220V, 50/60Hz |
Aoi: |
Automated |
Operating System: |
Windows 10 |
Dimension: |
1000mm X 800mm X 1500mm |
Inspection Area: |
Up To 510 X 510 Mm |
Pcb Size: |
Max. 500mm X 500mm |
Inspection Type: |
Automated |
Light Source: |
LED |
Inspection Speed: |
1000mm/s |
Camera System: |
3D Digital Camera |
Resolution: |
10μm |
Lighting System: |
LED |
Alignment Method: |
Automatic Alignment |
Lighting: |
RGB LED |
Inspection Accuracy: |
±5μm |
Power Supply: |
AC 220V, 50/60Hz |
Aoi: |
Automated |
Operating System: |
Windows 10 |
Dimension: |
1000mm X 800mm X 1500mm |
Inspection Area: |
Up To 510 X 510 Mm |

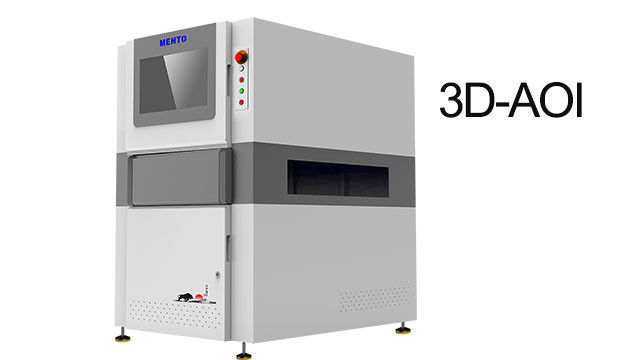

Application scope
Solder joint and mounted device inspection
Features
1.High speed, single FOV processing time is about 350ms
2.Anti-interference, high precision, large range
3.RGB light source seamlessly integrates 2D information to enhance judgment accuracy
4.Three-dimensional height visualization, which can display three-dimensional RGB data and height heat maps
Technical parameter
| Device model | K3412 | |
| Detection capacity | Detection items | Miss print, over solder, insufficient solder, solder bridging, solder paste tailing, shape anomany, offset |
| Scanning method | Stop&Go | |
| Optical system | Camera | 12MP high-speed color industrial camera |
| Light Source | 4 DLP light source (raster phase shift technology) and red, green and blue (RGB) light source | |
| Resolution | 10μm & 15um (optional) | |
| Detection performance | Height accuracy (calibration module) | 1μm (using standard calibration block) |
| Volume repeatability | <1% (standard verification block, 3Sigma) | |
| Maximum Plate Bending Compensation Value | ±3mm | |
| Detection Capability GRR | <10%at6o(+50%tolerance, 5μm resolution) | |
| Maximum detection height | 20mm/40mm | |
| Solution to shadow problem | Grating phase shifting technology to eliminate shadows & four-directional 3D light source illumination system | |
| Plate bending real-time compensation method | Plate Bend Compensation (Z-Tracking+Pad Referencing) | |
| Test screen | Color (3D and 2D images displayed together) | |
| Driving equipment | Servomotor+Screw Guide | |
| Moving speed | 800mm/s | |
| Minimum measurable product size | 50mmx50mm | |
| Maximum product measurable size | 400mmx500mm | |
| PCB thickness | 0.5~6mm | |
| Track width adjustment | Automatic width adjustment, manual width adjustment | |
| Circuit board conveying/fixing | Belt conveyor/pneumatic clamp fixing | |
| Conveying direction | From left to right, right to left | |
| Orbital height | 900±20mm | |
| Computer Configuration | Mainframe | CPU: Intel i5, RAM: DDR4-16G, GPU: GTX1660-6GB, SSD:250G, HDD: 2T |
| Monitor | 22"LED | |
| Operating system | Ubuntu | |
| Parameters | Overall size | W1000xD1380xH1600mm (excluding alarm light) |
| Weight | 1100KG | |
| Power source | AC220V/50~60Hz/2000W | |
| Air Pressure | 0.5Mpa | |
| Software Supported Input Formats | Support Gerber format (274X), ODB++ | |
| Environmental requirements | Temperature: 5~40℃, relative humidity: 25%~80% (no frost) | |
| Upstream and downstream equipment communication | Standard SMEMA interface | |
