Dongguan MENTO Intelligent Technology Co., Ltd. info@mento-mv.com 00-86-13410031559
Product Details
Place of Origin: China dongguan
Brand Name: Mento
Certification: ISO9001/ISO14001
Model Number: M2020-2012EL
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: W1000mmxD1380mmxH1600mm(without foot 100±20mm)
Delivery Time: 3 week
Payment Terms: on line, L/C, T/T
Supply Ability: 1000/month
Dimension: |
1000mm X 800mm X 1200mm |
Operating System: |
Windows 10 |
Inspection Speed: |
1000mm/s |
Camera Type: |
High-Resolution CCD |
Inspection Method: |
3D Inspection |
Inspection Accuracy: |
±5μm |
Model: |
XYZ-1000 |
Dimension: |
1000mm X 800mm X 1200mm |
Operating System: |
Windows 10 |
Inspection Speed: |
1000mm/s |
Camera Type: |
High-Resolution CCD |
Inspection Method: |
3D Inspection |
Inspection Accuracy: |
±5μm |
Model: |
XYZ-1000 |
With dimensions of 1000mm X 800mm X 1200mm, this machine is compact and easy to integrate into your existing production line. And with an inspection accuracy of ±5μm, you can trust that your PCBs will be thoroughly inspected for any defects or errors.
The LED light source provides consistent and reliable illumination for clear imaging, while the 3D inspection method ensures accurate detection of defects such as soldering errors, component misalignment, and more.
Trust our AOI equipment manufacturers to provide you with the best PCB inspection system available. Contact us today to learn more about our AOI PCB Machine and how it can improve your production line.

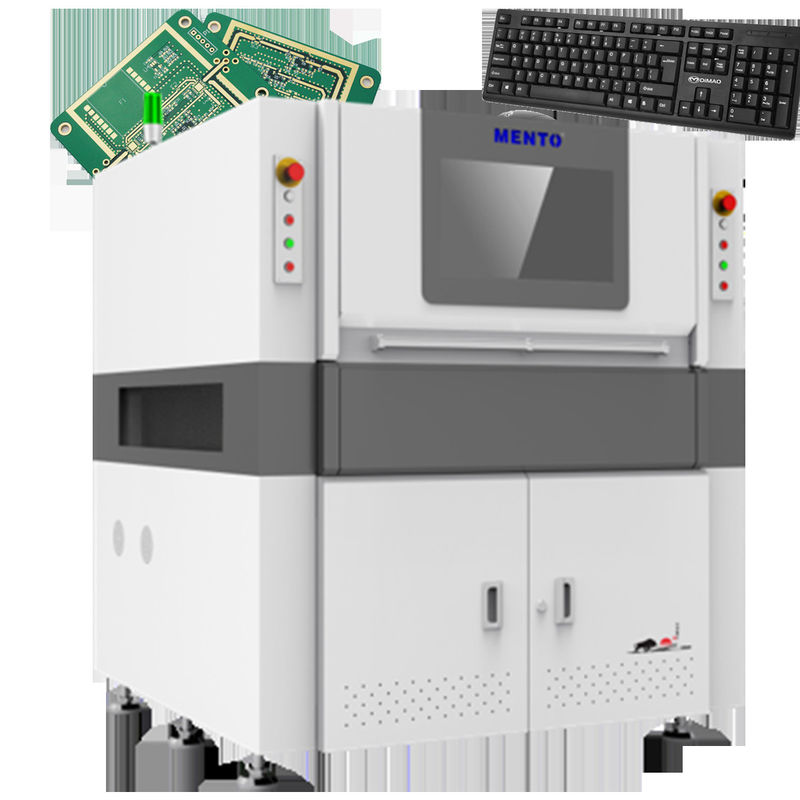

| Model | Mini LED appearance & luminescence all-in-one M2020-2012EL | |||
| Detection capacity | Inspection items | Missed bonding, wrong bonding, die damaged, die offset, die tilted, die flipped, wrong polarity, particles, die lift-off, poor collinearity. | Bad die, over luminescence, under luminescence, chroma anomaly | |
| Detection method | Image processing, machine learning | |||
| Optical system | Camera | 20MP | 12MP | |
| telecentric lens | High resolution bi-telecentric lens | |||
| Resolution | 4um (2.4um~5um optional) | 15μm(10um~18um optional) | ||
| Light Source | RGB(Customizable) | |||
| Efficiency | Stop then go:3FOV/s | |||
| Computer Configuration | Mainframe | CPU:Inteli7, RAM:DDR4-32G, GPU:GTX1660-6GB, SSD:250G, HDD:2T | CPU:Inteli7, RAM:DDR4-32G, GPU:GTX1660-6GB, SSD:250G, HDD:2T | |
| Monitor | 22 "LED | |||
| Operating System | Ubuntu/Windows 10 Professional | |||
| Detection performance | PCB thickness | 1~5mm | ||
| Maximum allowable component height | 20mm upper, 30mm lower (Customizable) | |||
| Drive | Servo motor + Screw guide | |||
| Movement speed | Max :600mm/s | |||
| PCB fixture height | 900±20mm(Dual station, adjustable track width) | |||
| Parameters | PCB size | Max: 350mmx300mm | Max: 370mmx350mm | |
| Power supply | AC220V/50Hz/2000W | |||
| Dimensions | W1330xD1360xH1650mm (excluding warning light) | |||
| Weight | 1600KG | |||
| Air Pressure Requirement | ≥0.5Mpa | |||
| Environmental requirements | Temperature:5~40℃, RH 25%~80%(no frost) | |||
| Upstream and downstream equipment communication | Standard SMEMA interface / data communication with die bonder | |||
| Model | XYZ-1000 |
| Inspection Speed | 1000mm/s |
| Weight | 200kg |
| Inspection Accuracy | ±5μm |
| Inspection Method | 3D Inspection |
| Camera Type | High-Resolution CCD |
| Resolution | 10μm |
| Pcb Thickness | 0.2mm - 6mm |
| Operating System | Windows 10 |
| Dimension | 1000mm X 800mm X 1200mm |
AOI machines are used for various PCB testing methods, such as solder paste inspection, component placement inspection, and quality control inspection. These machines are used in various industries, including electronics, automotive, aerospace, and medical. They are ideal for PCB manufacturers who want to ensure that their products are of the highest quality.
The Mento AOI PCB machine has a high-resolution CCD camera that captures clear images of the PCB. This camera can detect defects that are as small as 10μm. The machine has an Ethernet interface that allows for easy connectivity to other devices. It has a weight of 200kg, which makes it easy to move around the factory floor.
The Mento AOI PCB machine is capable of handling PCBs with a thickness of 0.2mm to 6mm. This means that it can handle a wide range of PCBs, making it ideal for manufacturers who produce different types of PCBs.
In conclusion, the Mento AOI PCB machine is an essential tool for any PCB manufacturer. It is easy to use, reliable, and efficient. It can detect defects that other testing methods may miss, making it an invaluable asset for quality control. It is also highly customizable, making it suitable for a wide range of applications.
The AOI PCB Machine product technical support and services include:
Product Packaging:
Shipping:
Q: What is the brand name of the PCB machine?
A: The brand name of the PCB machine is Mento.
Q: Where is the PCB machine manufactured?
A: The PCB machine is manufactured in Dongguan, China.
Q: Is the PCB machine certified?
A: Yes, the PCB machine is certified with ISO9001 and ISO14001.
Q: What is the minimum order quantity for the PCB machine?
A: The minimum order quantity for the PCB machine is 1.
Q: What is the delivery time for the PCB machine?
A: The delivery time for the PCB machine is 1 week.
Q: What are the payment terms for purchasing the PCB machine?
A: The payment terms for purchasing the PCB machine are on line.
Q: What is the supply ability for the PCB machine?
A: The supply ability for the PCB machine is 1000/month.
Q: Is the price for the PCB machine negotiable?
A: Yes, the price for the PCB machine is negotiable.
