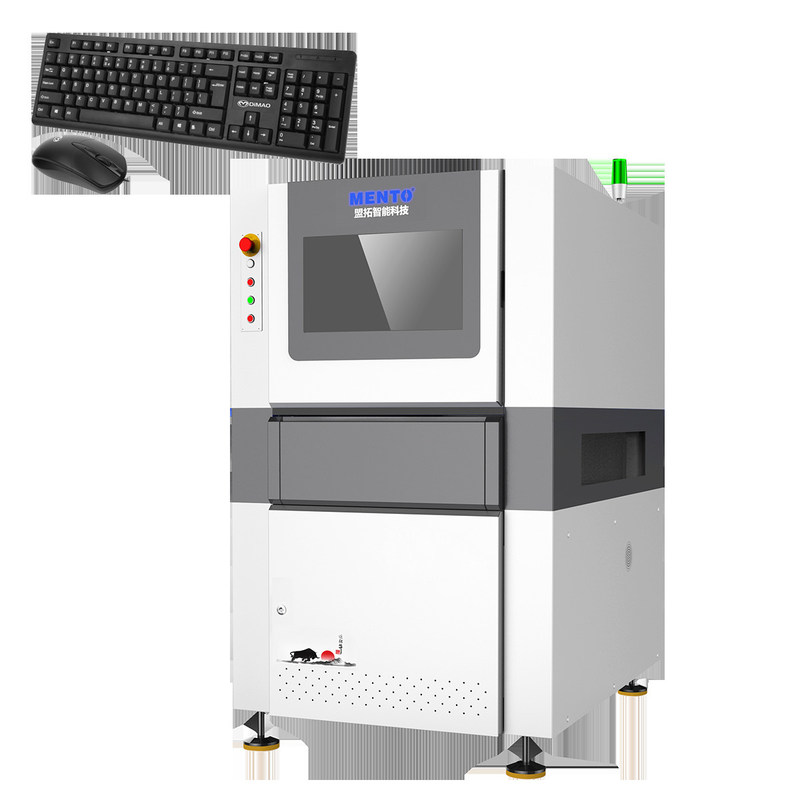

Our AOI PCB Machine boasts a compact design that is perfect for small and medium-sized production lines. With dimensions of 1000mm X 800mm X 1200mm, our machine can easily fit into any production environment. The machine has a weight of 200kg, making it easy to move around and position where you need it.
Our AOI PCB Machine is equipped with a high-resolution CCD camera that ensures accurate inspection of your PCBs. This camera is capable of capturing images with a resolution of 10μm, which means you can be assured of precise and accurate results every time.
The AOI PCB Machine is designed to handle a wide range of PCB thicknesses, from 0.2mm to 6mm. This makes it an ideal choice for manufacturers who produce a variety of PCBs of different thicknesses.
With our AOI PCB Machine, you can expect fast and efficient inspection of your PCBs. This machine is capable of inspecting up to 60cm² of PCB surface area per minute, which means you can get your inspection done quickly and efficiently.
Our AOI PCB Machine is easy to use and requires minimal training. It comes with a simple and intuitive interface that allows you to easily set up and configure the machine for your specific needs.
In conclusion, if you're looking for a high-quality AOI PCB Machine that can meet the demands of your production line, then look no further than our range of products from AOI equipment manufacturers. Our machine boasts a compact design, high-resolution CCD camera, and is capable of handling a wide range of PCB thicknesses. Plus, it's fast, efficient, and easy to use, making it the perfect choice for any manufacturer looking to improve their PCB inspection process.
| M20M series Mini LED PCB pad measurement | |||
| Model | M2020MS | M2020MM | |
| Detection capacity | Inspection items | Mini LED PCB pad measurement | |
| Inspection method | Global calibration, pad global alignment | ||
| Optical system | Camera | 20MP | |
| telecentric lens | High resolution bi-telecentric lens | ||
| Resolution | 4um (2.4um~5um optional) | ||
| Light Source | RGB(Customizable) | ||
| Efficiency | Four side detection 20s/pcs | ||
| Computer Configuration | PC | CPU:Inteli7, RAM:DDR4-32G, GPU:GTX1660-6GB, SSD:250G, HDD:2T | |
| Monitor | 22 "LED | ||
| Operating System | Ubuntu | ||
| Detection performance | PCB thickness | 1~5mm | |
| Maximum allowable component height | 20mm upper, 30mm lower (special height can be customized) | ||
| Drive | Linear motor + grating ruler | ||
| Movement speed | Max :600mm/s | ||
| PCB fixture height | 900+20mm(from floor to fixture surface) | ||
| Parameters | PCB size | Max: 300mmx250mm | |
| Power supply | AC220V/50Hz/2000W | ||
| Dimensions | W1330xD1360xH1650mm (excluding warning light) | ||
| Weight | 1600KG | ||
| Air Pressure Requirement | ≥0.5Mpa | ||
| Environmental requirements | Temperature:5~40℃, RH 25%~80%(no frost) | ||
| Upstream and downstream equipment communication | Standard SMEMA interface / data communication with die bonder | ||
This AOI machine uses 3D inspection as one of the most effective PCB testing methods to ensure accuracy and reliability of the inspection process.
| Technical Parameters | Value |
|---|---|
| Interface | Ethernet |
| Dimension | W1000mmxD1380mmxH1600mm(without foot 100±20mm) |
| Camera Type | High-Resolution CCD |
| Pcb Thickness | 0.2mm - 6mm |
| Operating System | Windows 10 |
| Weight | 200kg |
| Inspection Speed | 1000mm/s |
| Light Source | LED |
| Inspection Method | 3D Inspection |
| Model | XYZ-1000 |
This AOI PCB Machine product has a 3D inspection method and uses High-Resolution CCD camera type for PCB inspection system. It supports Ethernet interface and can inspect PCBs with a thickness of 0.2mm - 6mm. Operating system used is Windows 10 and it has a weight of 200kg. It can inspect at a speed of 1000mm/s and uses LED as light source.
